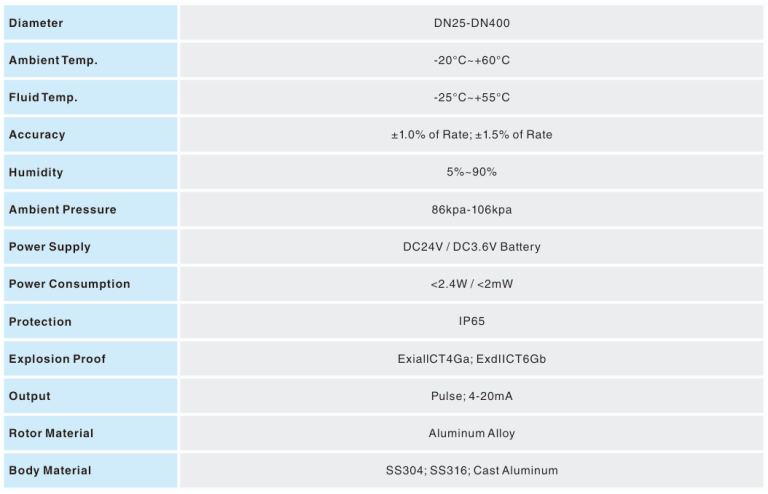

Diameter: DN25-DN400
Ambient Temp.: -20°C~+60°C
Fluid Temp.: -25°C~+55°C
Accuracy: ±1.0% of Rate; ±1.5% of Rate
Humidity: 5%~90%
Ambient Pressure: 86kpa-106kpa
Power Supply: DC24V / DC3.6V Battery
Power Consumption: <2.4W / <2mW
Protection: IP65
Explosion Proof: ExiallCT4Ga; ExdIICT6Gb
Output: Pulse; 4-20mA
Rotor Material: Aluminum Alloy
Body Material: SS304; SS316; Cast Aluminum

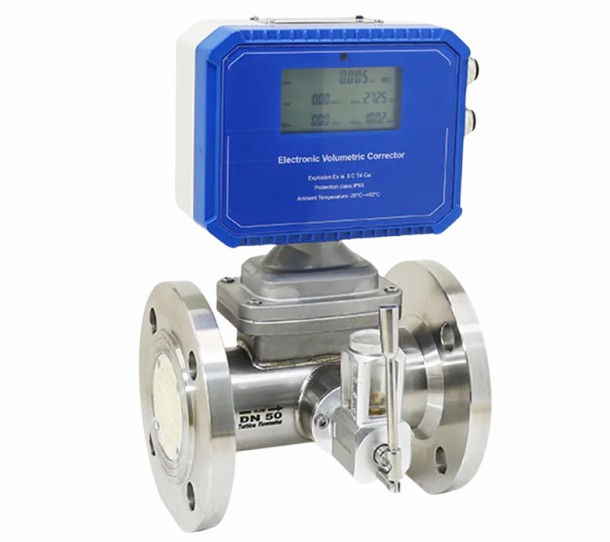

When the fluid flows into the flow meter, it is rectified and accelerated by the integrated rectifier, and then acts on the turbine blades at a certain angle to the flow direction. After overcoming the mechanical resistance and fluid resistance, the turbine starts to rotate. When the rotation reaches a stable state, within a certain flow range, the gas flow is proportional to the turbine speed. The turbine speed is extracted by the sensor and then calculated by the converter, combined with the temperature and pressure inside the pipeline, so as to realize the calculation of the standard cumulative flow and standard volume flow.
– Temp. & pressure compensa on
– Digital absolute pressure transmitter
– Segment LCD, displays normally at -30℃
– Integrated movement
– Communication: Modbus RS485
– Simultaneous display flow rate, total flow volume, pressure & temp.
| Oil and Gas Industry | Urban Gas Distribution Networks | Chemical Industry |
| Steel and Metallurgy Industry | Power Generation and Cogeneration | Food and Beverage Industry |
| Aerospace Industry | Pharmaceutical Industry | Environmental Protection |
