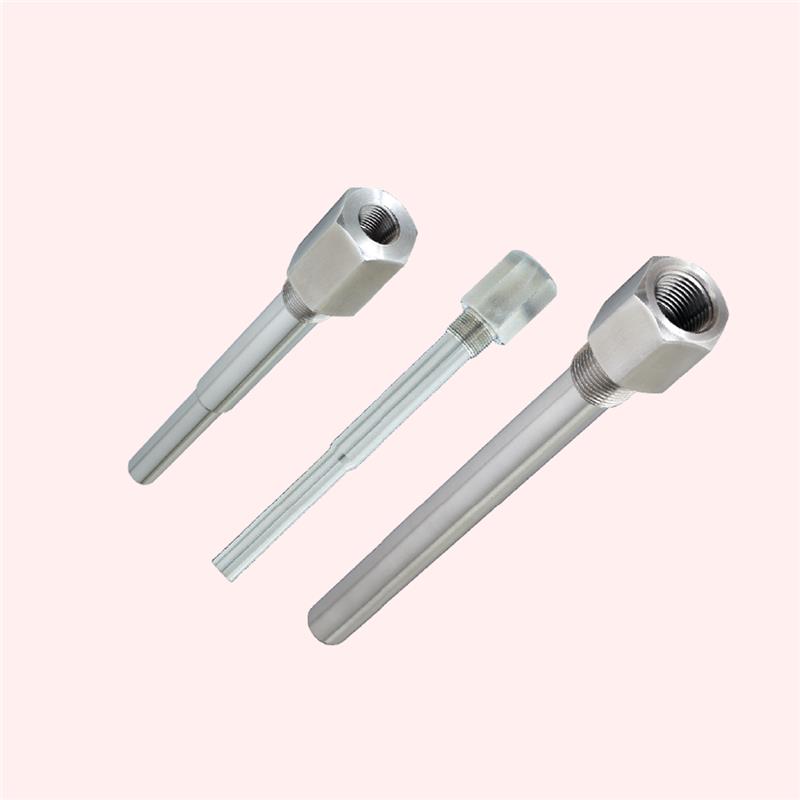

RE RT1
Thermowells Bar Stock (Screwed)
Special Features
- Design as per PTC 19.3
These Thermowells are manufactured from solid bar stock and installed into the process with the help of threaded process connection. - This design is suitable for all type of RTD’s, Thermocouples, mechanical as well as digital thermometers.
- Available in various shapes like Straight, Straight with reduced tip, partial taper & full taper
RE RT2
Thermowells Bar stock (Flanged)
Special Features
- Design as per PTC 19.3
- These Thermowells are manufactured from solid bar stock and installed into the process by using a flanged connection
- This design is suitable for all type of RTD’s, Thermocouples, Mechanical as well as digital thermometers
- Full penetration welded
- Available in various shapes like Straight, Straight with reduced tip, partial taper & full taper
- All type of flanges and flange facings are available as per ANSI / DIN / JIS & BS
Application- Cooling towers are used mainly to protect pressure Instruments, gauges, switches and transmitters directly coming in contact with high temperature process fluids or vapours filled with condensation fluids.
- These are mounted between process and pressure instrument.
- They reduce process pulsation, act as heat dispenser and generate fect to save instrument from working at dangerous temperature
RE RT4
Thermowells Fabricated (Screwed)
Special Features
- These thermowells are fabricated from pipe with a welded end cap.
- These thermowells are installed directly into the process with the help of threaded process connection.
- Ideal for use in longer length tank & vessels where bar stock is a limitation.
Application - HVAC Industries
- Utilities
- Chemical plants
- Pharmaceutical
- Engineering plants
- On shore
- Off shore & other similar process industries
RE RT5
Thermowells Fabricated (Flanged)
Special Features
- These Thermowells are fabricated from pipe with a welded end cap
- These Thermowells are installed directly into the process by using a bolted flanged connection
- Available in various shapes like straight, straight with reduced tip, partial taper & full taper
- All type of flanges and flange facings are available as per ANSI / DIN / JIS & BS
- Ideal for use in longer length tank & vessels where bar stock is a limitation
Application - Chemical plants
- Petrochemical plants
- Engineering plants
- On shore
- Off shore & other similar process industries
