Pressure Range: 0-(±0.1~±100)kPa, 0~50Pa ~1000MPa
Pressure Type: Gauge Pressure (G), Absolute pressure (A), Sealed pressure (S), Negative pressure (N)
Accuracy: 0.1 %FS, 0.2 %FS, 0.5 %FS
Display: 100% Linear meter, 3 1/2 LCD/LED, 4-bit LCD/LED
Output: 4-20mA ; 4-20mA + HART; RS485; 4-20mA+RS485; 0-5V; 0-10V
Compensation Range: -10 ~ 70 ℃
Operation Temperature: -40 ~ 85℃
How It Works
Application

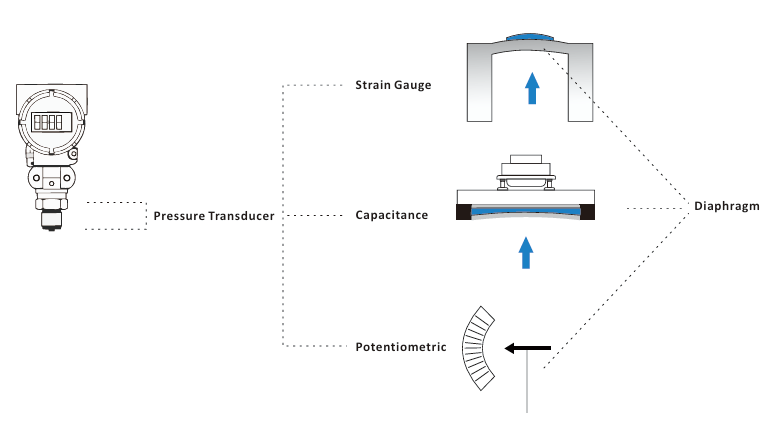

Operating Principle
Pressure transmiters adopt advanced imported sensor component, which is combined with the solid state integrated technological and isolate diaphragm technology. The product is designed to work well under various conditions. The temperature compensation resistance makes on the ceramic base, which is the excellent technology of the pressure transmitters, 4-20mA (2-wire) output, strong anti-jamming, it is suitable for long distance transmission.
In general, pressure transmitters consist of three main components:
The pressure sensor
The measurement circuit
Process connection

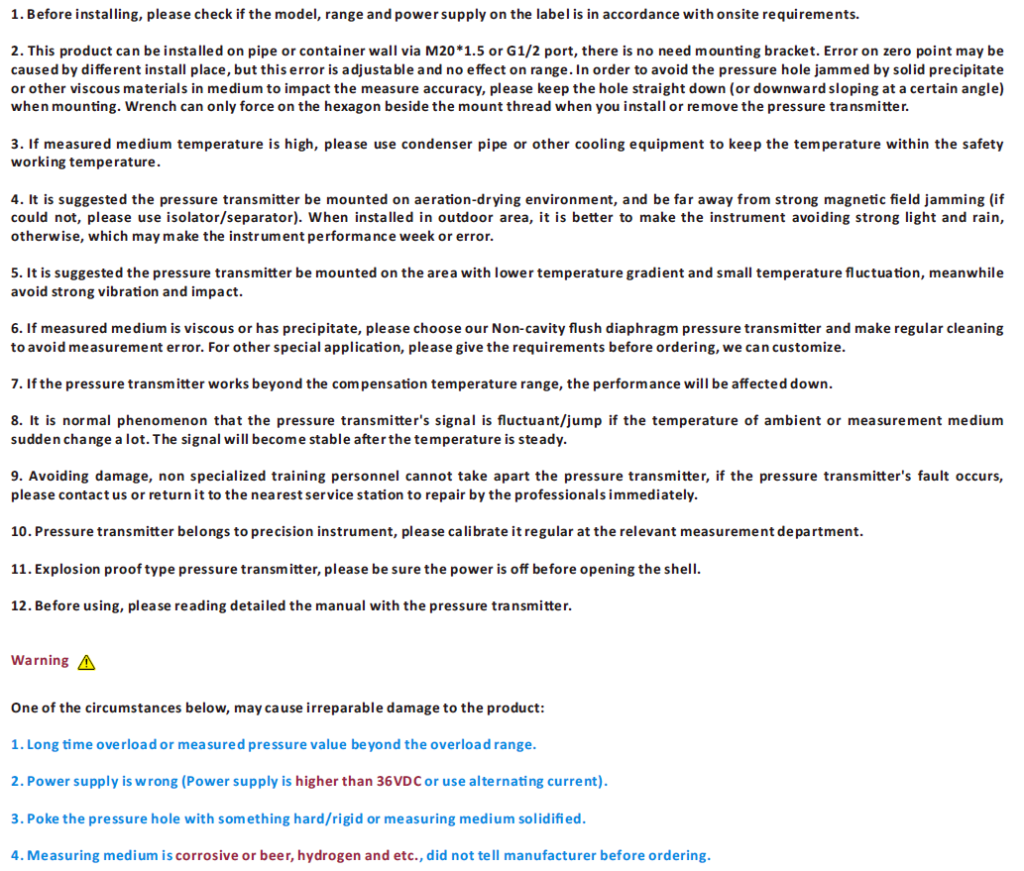

Installation Guide
| Process Control | Fuel Systems | Solar Thermal Systems |
| Food & Beverage | Pharmaceutical | Air Handling Unites |
| Water Distribution | Chemical Processing | Cooling Systems |
| Tank Level Monitoring | Pressure Relief Systems |

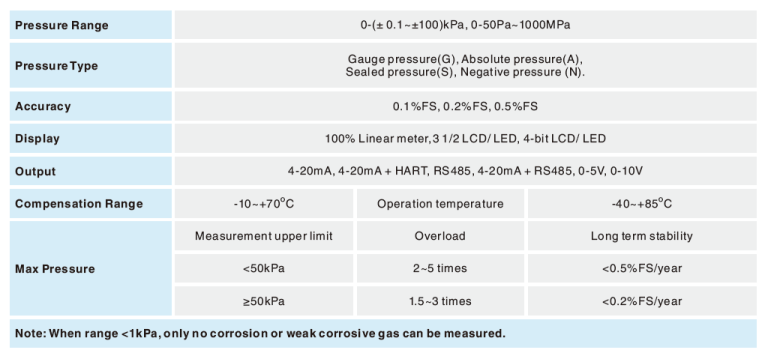

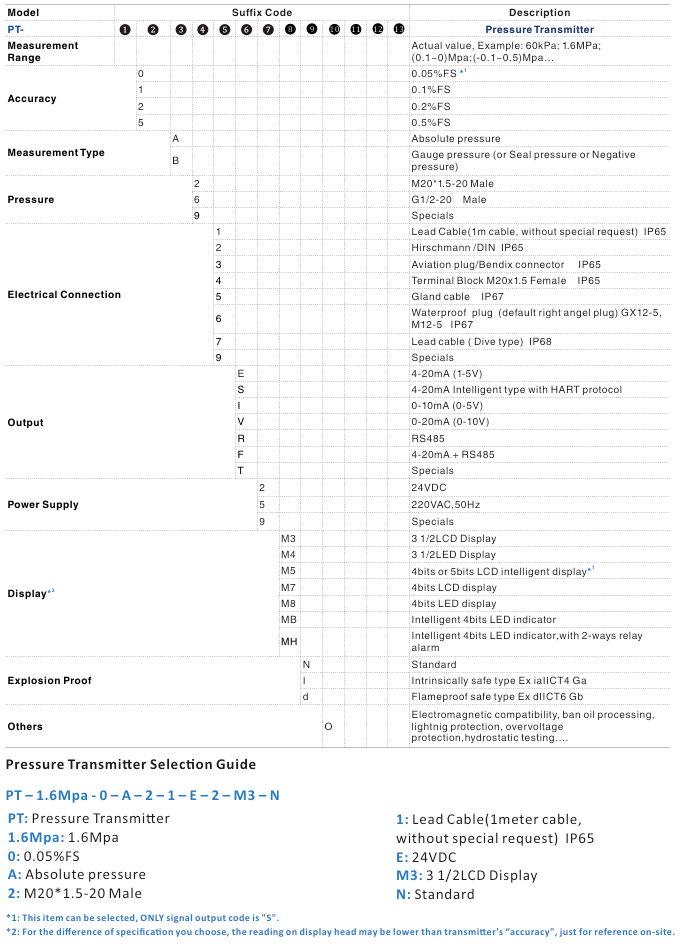

Technical Data & Model Selection
