Accuracy: ±1.5% of rate; ±1.0% of rate
Ambient Temp.: -30…+65°C
Fluid Temp.: -20…+80°C
Power Supply: 24V DC±15%; 3.6V Lithium Battery
Power Consumption: External: <2W
Humidity: 5%-95%
Output: 4-20mA; Pulse; RS485
Connection: Flange; thread
Protection Level: IP65
How It Works
Features
Application

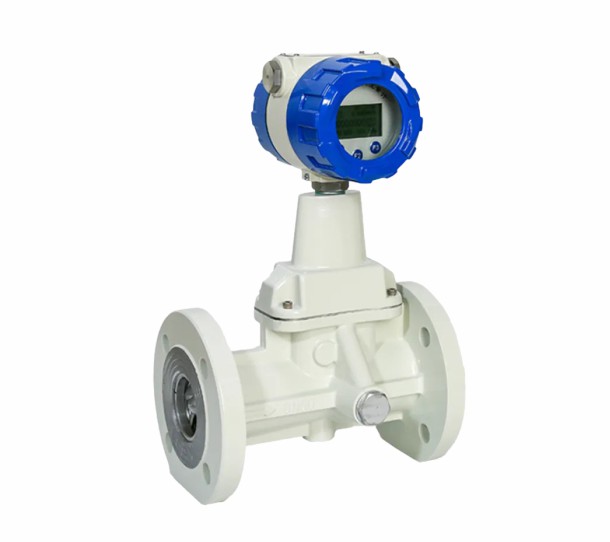

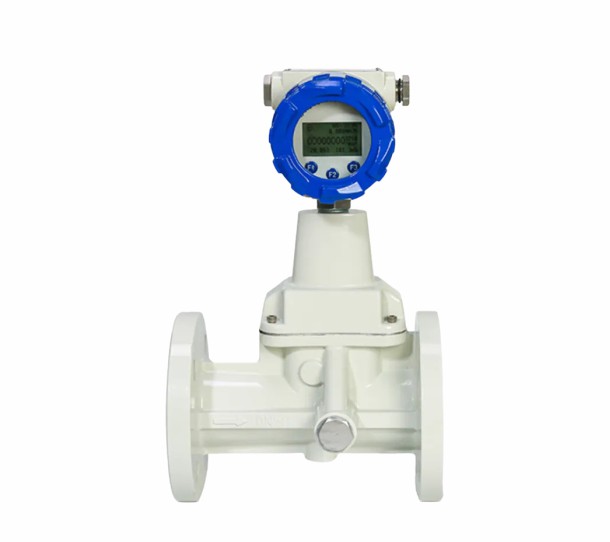

Intelligent swirl flow meter developed by our company is a new flow instrument at the leading level in China. This instrument has a combined function of flow capacity, temp and pressure measuring. It can also conduct auto compensation of temperature, pressure and compressibility factor. It is an ideal gas dosing instrument for petroleum, chemical, electricity and metallurgic industries.
– No mechanical moving parts with longer life-time
– Requires no special maintenance even after long-time operation
– Dual detect technique to effectively increase detecting signal intensity and reduce obstruction caused by pipeline vibration
– Vibration-proof techniques to effectively suppress vibration and undesired signal caused by pressure oscillation
– Gauge head of the flow meter can rotate by 360 degree
– Low flow starting point
– Oxygen and compressed air measurement
| Oil and Gas Industry | Urban Gas Distribution Networks | Chemical Industry |
| Steel and Metallurgy Industry | Power Generation and Cogeneration | Food and Beverage Industry |
| Aerospace Industry | Pharmaceutical Industry | Environmental Protection |

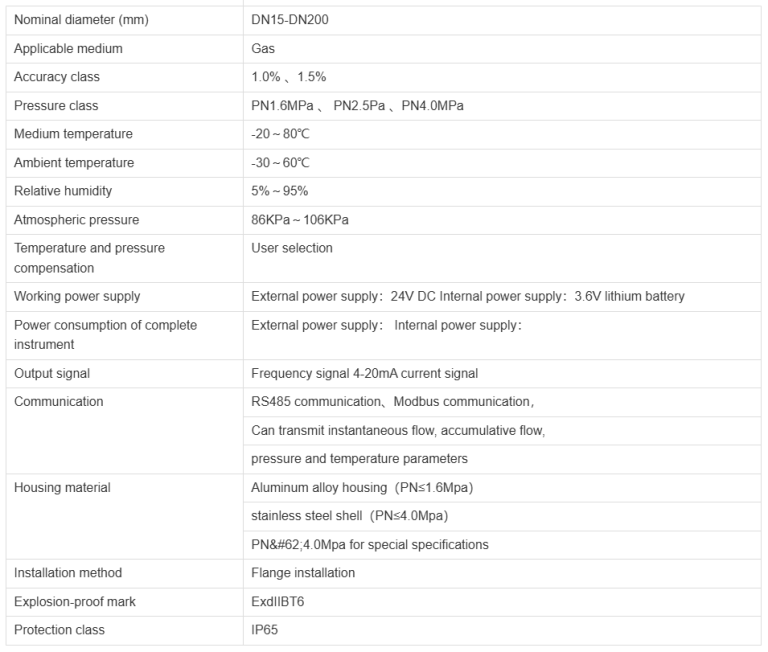

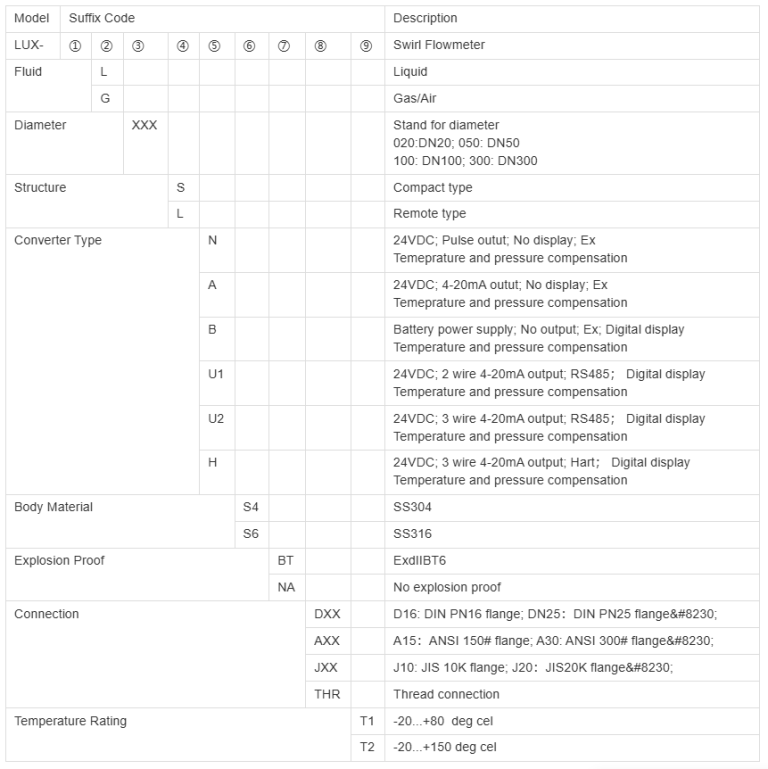

Technical Data & Model Selection
