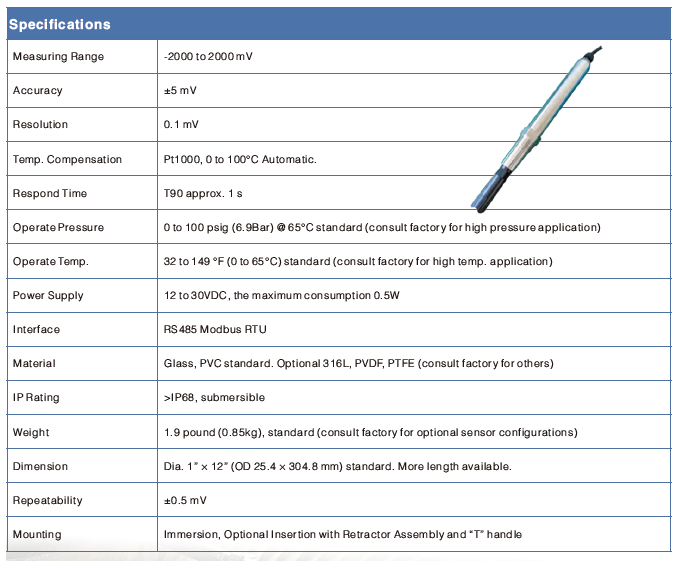

Measuring Range: -2000 to 2000 mV

Accuracy: ±5 mV

Resolution: 0.1 mV

Repeatability: ±0.5 mV

Temp. Compensation: Pt1000, 0 to 100°C Automatic.

Respond Time: T90 approx. 1s

Operate Pressure: 0 to 100 psig (6.9Bar) @ 65°C standard (consult factory for high pressure application)

Operate Temp.: 32 to 149 °F (0 to 65°C) standard (consult factory for high temp. application)

Power Supply: 12 to 30VDC, the maximum consumption 0.5W

Material: Glass, PVC standard. Optional 316L, PVDF, PTFE (consult factory for others)

IP Rating: >IP68, submersible

Weight: 1.9 pound (0.85kg), standard (consult factory for optional sensor configurations)

Dimension: Dia. 1″ × 12″ (OD 25.4 × 304.8 mm) standard. More length available.

Mounting: Immersion, Optional Insertion with Retractor Assembly and “T” handle
