WATER ANALYSIS

STU: Turbidity & Suspended Solids

Range: 0.00 to 1000 NTU.4000NTU; 0.00 to 1300 mg/L, 50 g/L, 120 g/L

Resolution: 0.1 to 10 NTU, mg/L

Unit: ppm,mg/L,g/L. NTU,FNU

Accuracy: <±1% FS (Turbidity), ±5% FS (SS)

Repeatability: ±2%FS

Operate Temp.: 32 to 122 ℉(0 to 50°C)

Store Temp.: 14 to 140°F(-10 to 60°C)

Protection: Immersible, >lP68

Pressure: 5 bar

Weight: 2.53 lbs.(1.15kg Sensor with 30′ cable)

Material: 316L,Sapphire Glass,Titanium Body is Optional

Communication: Modbus RTU

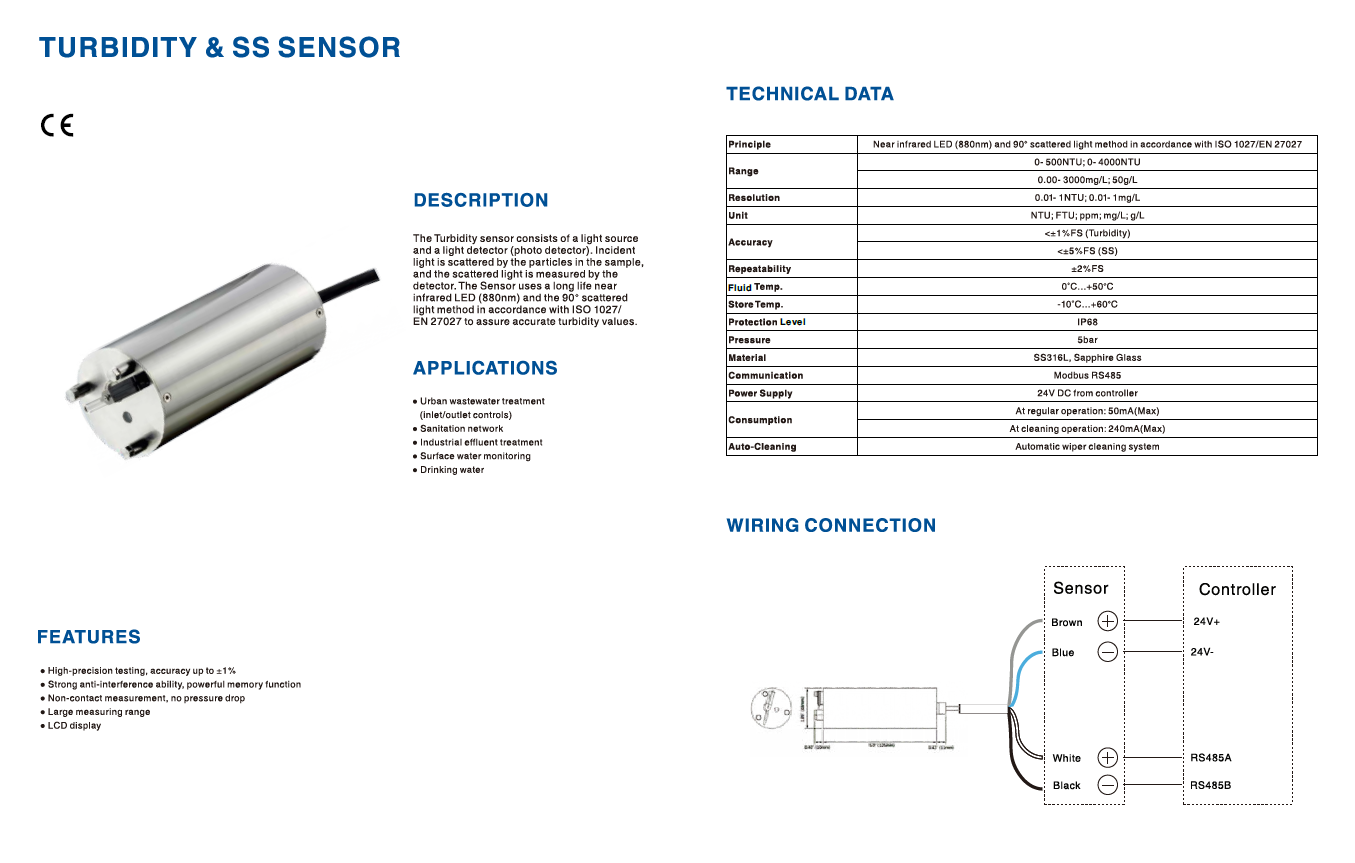

Technical Data
